Stacking

Product Description

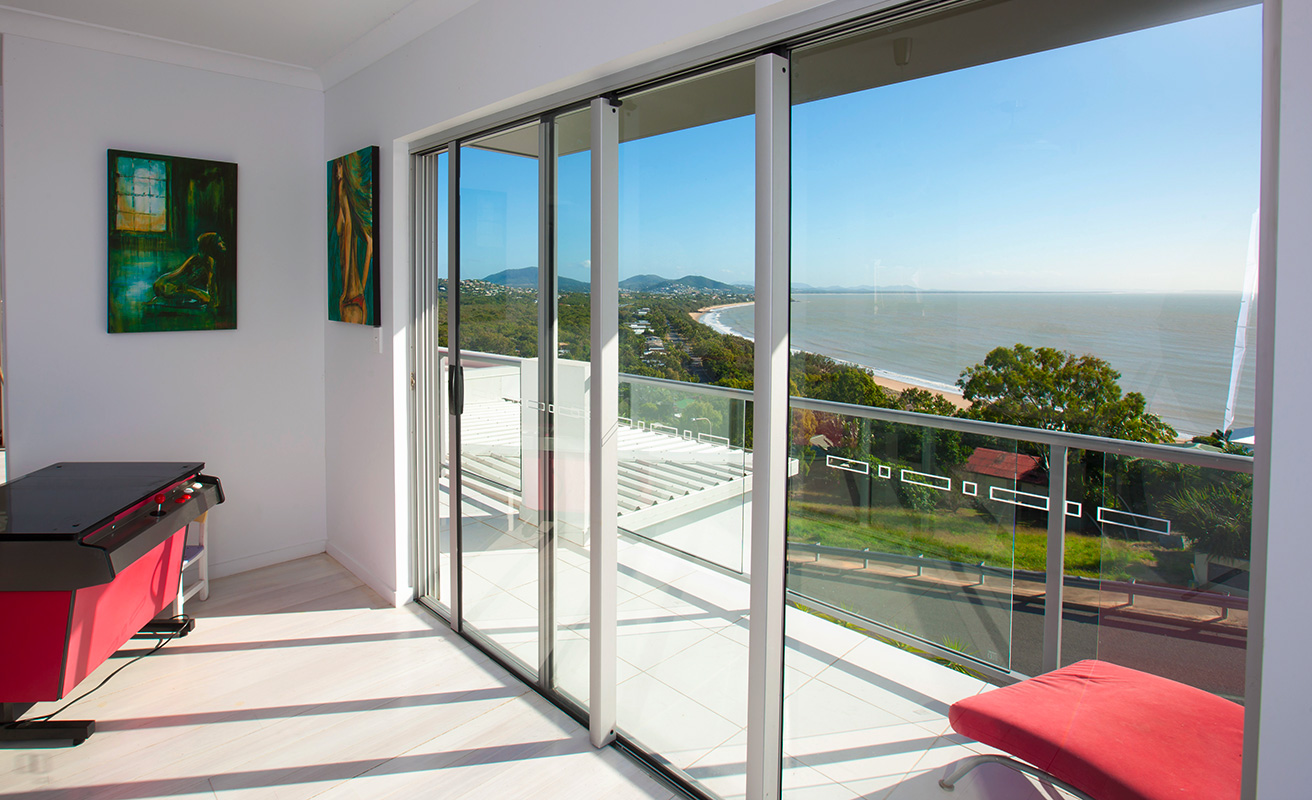

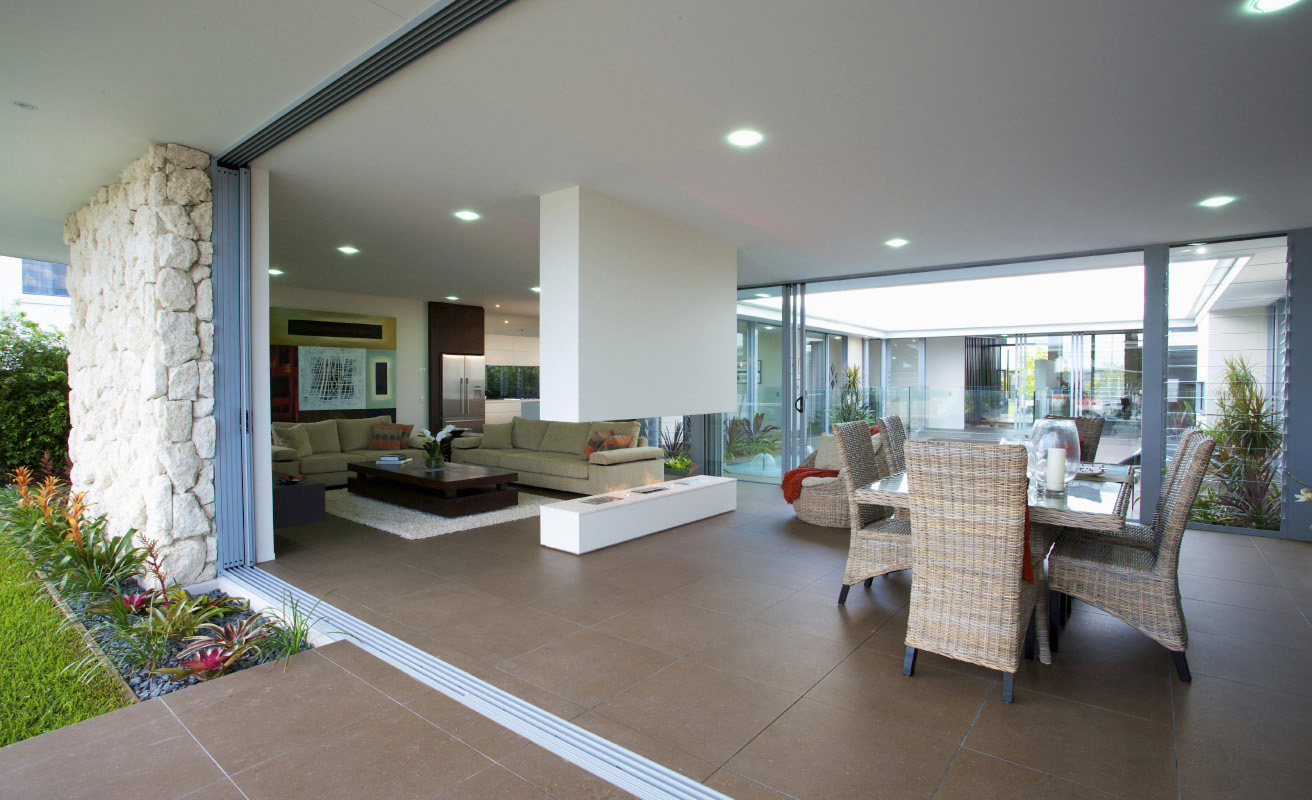

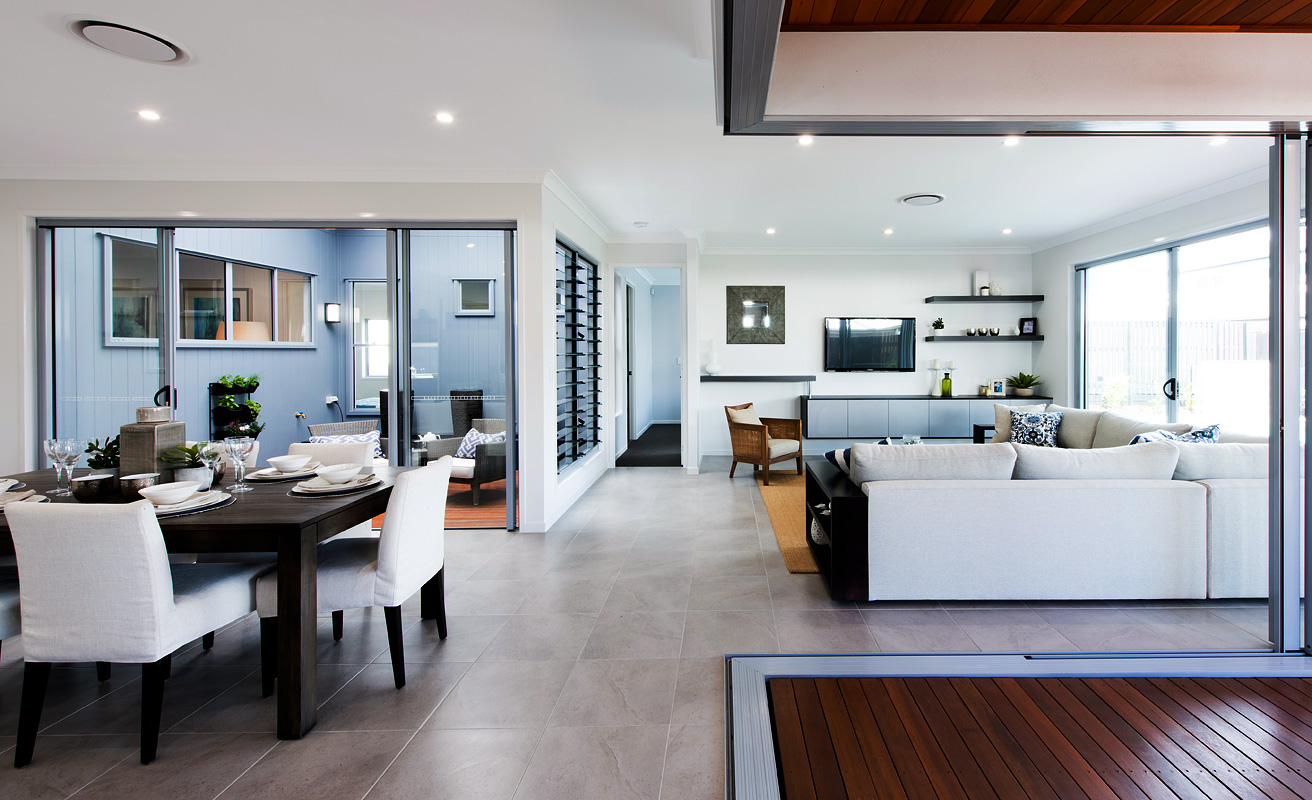

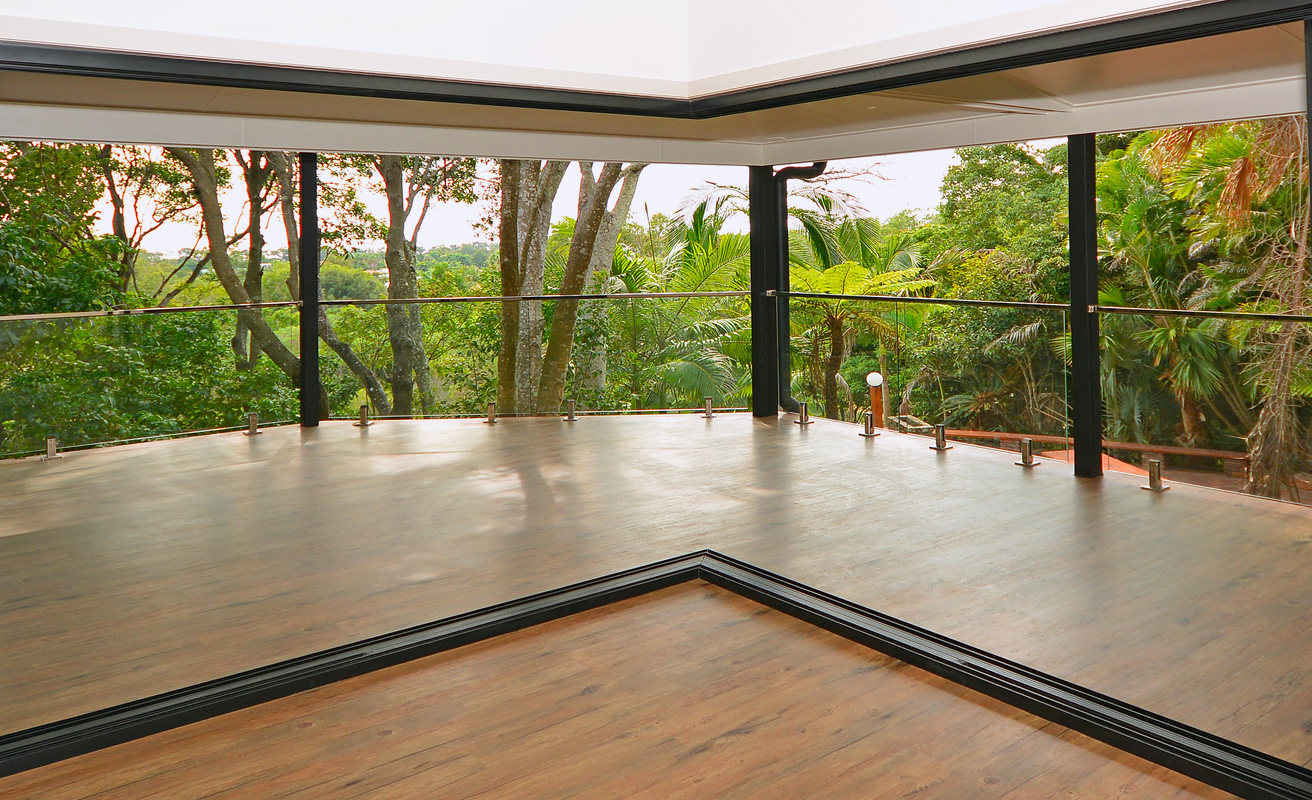

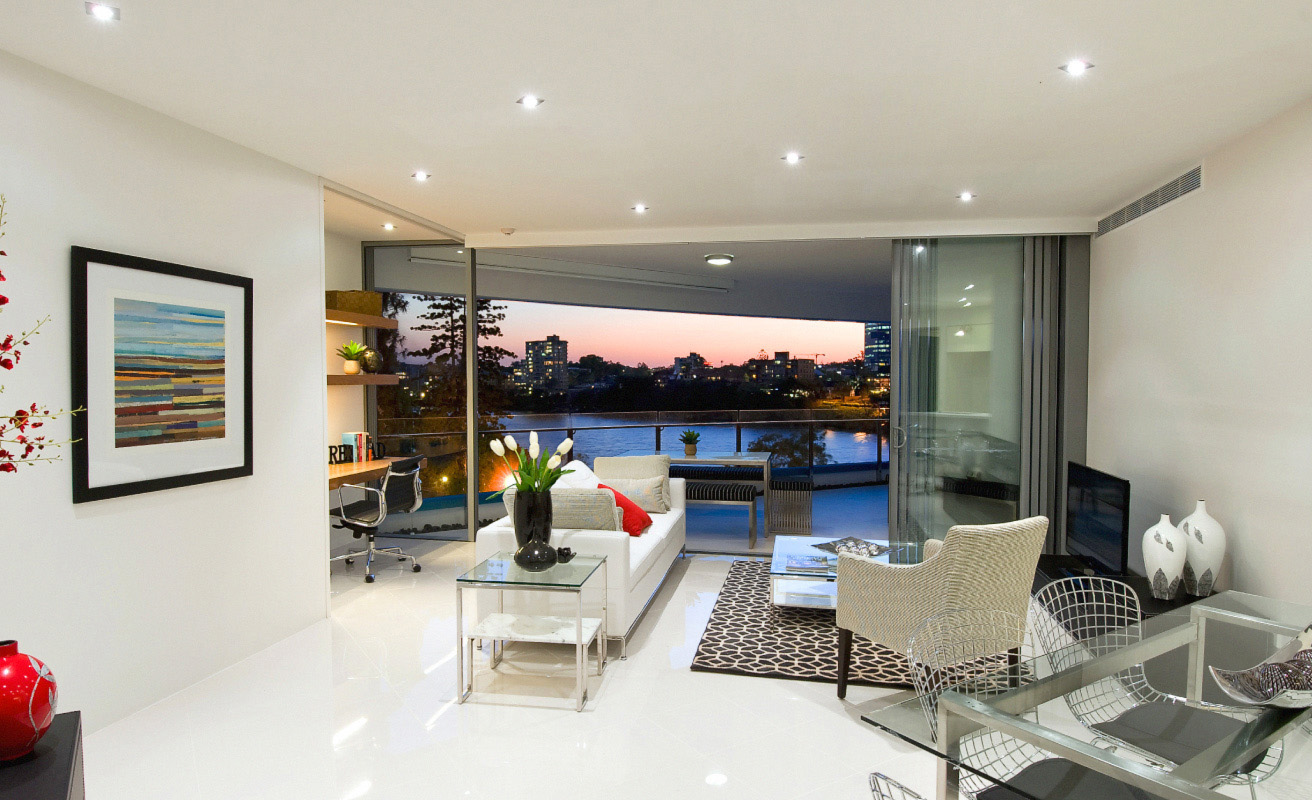

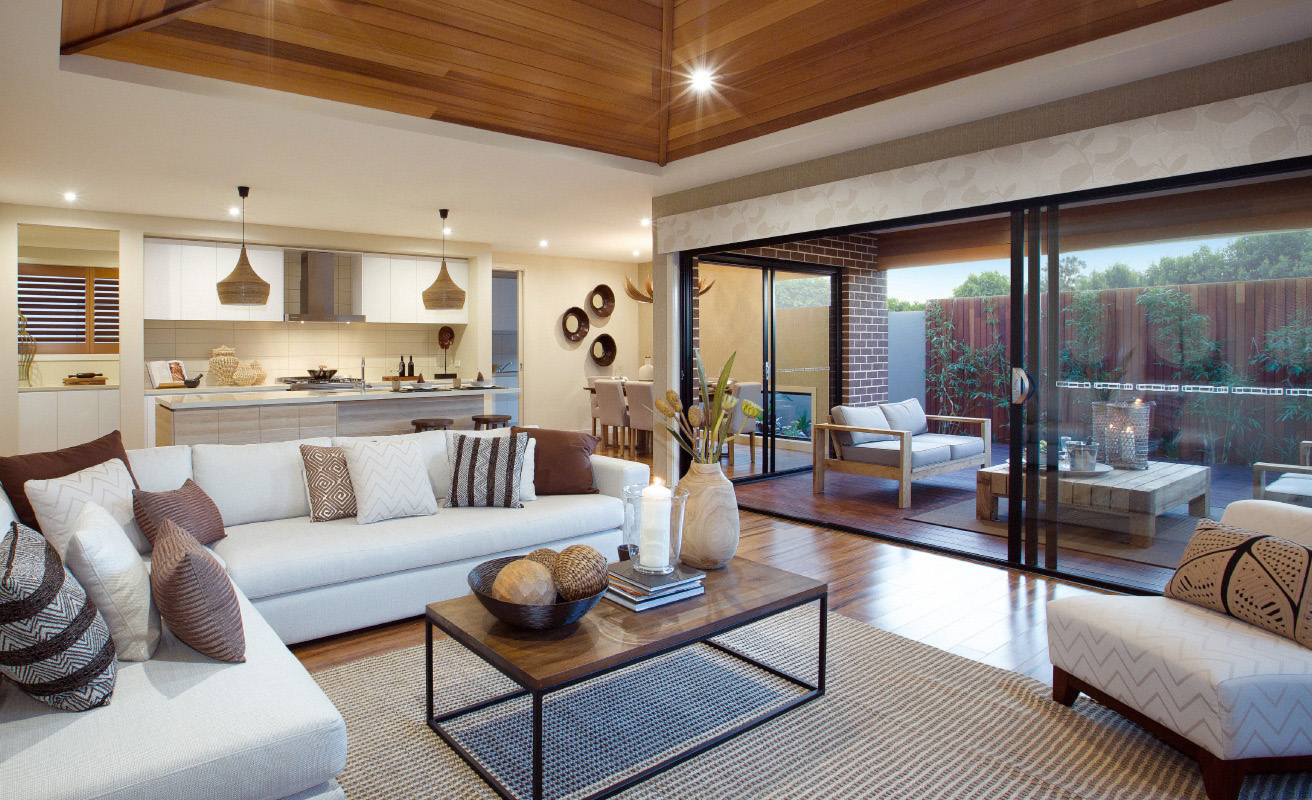

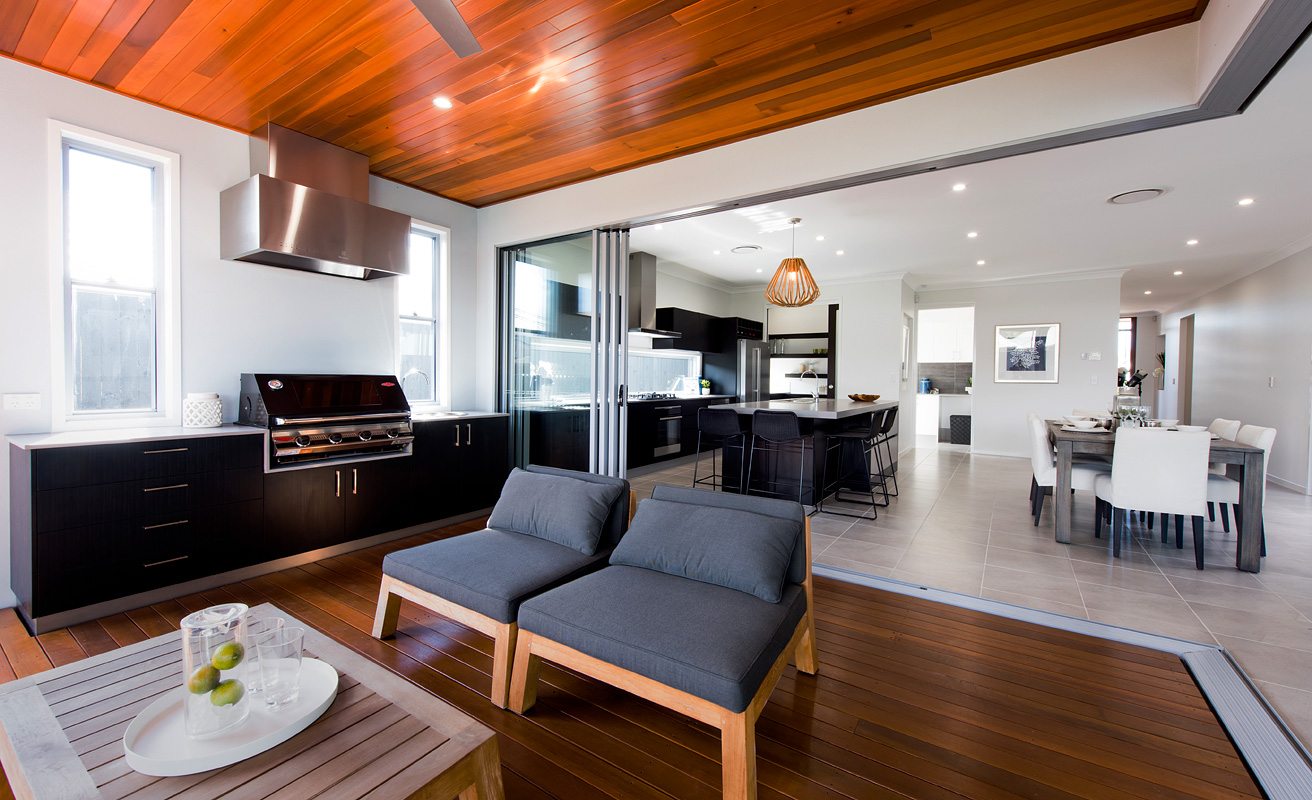

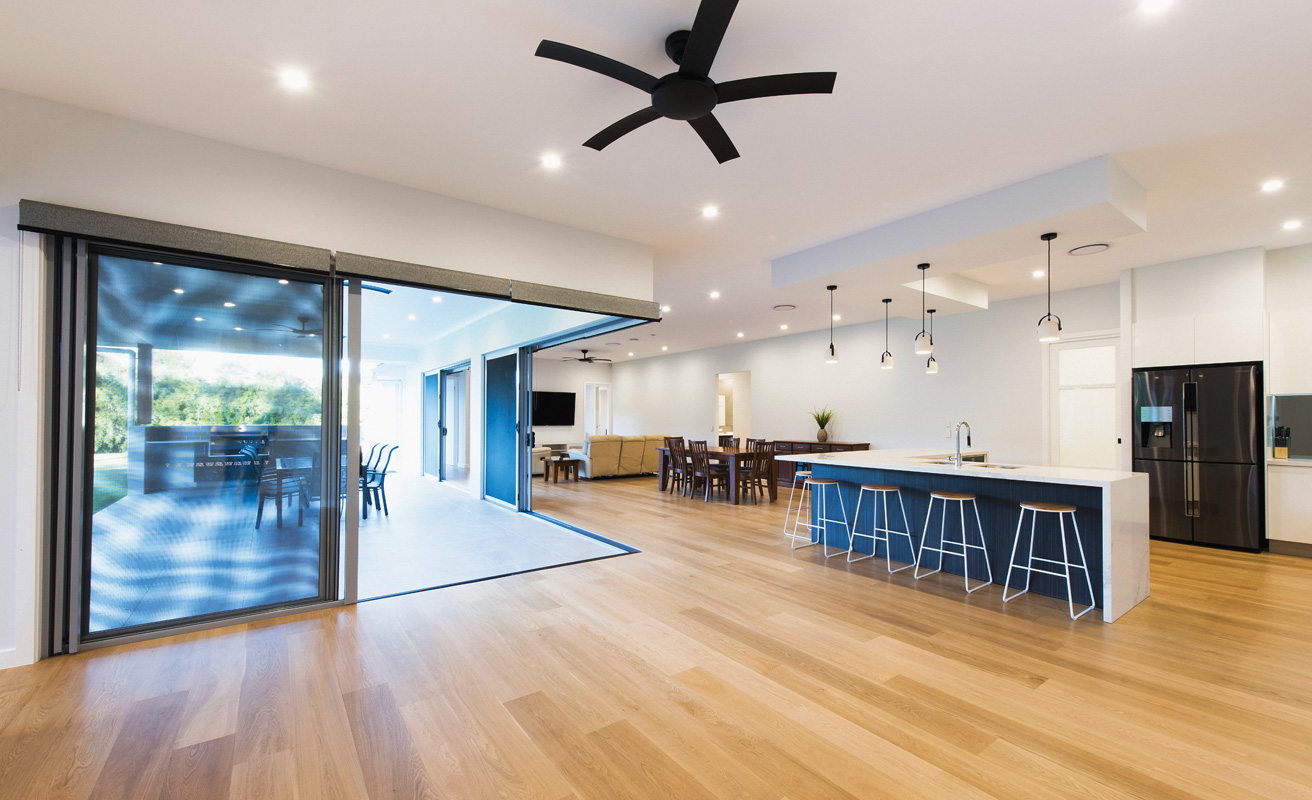

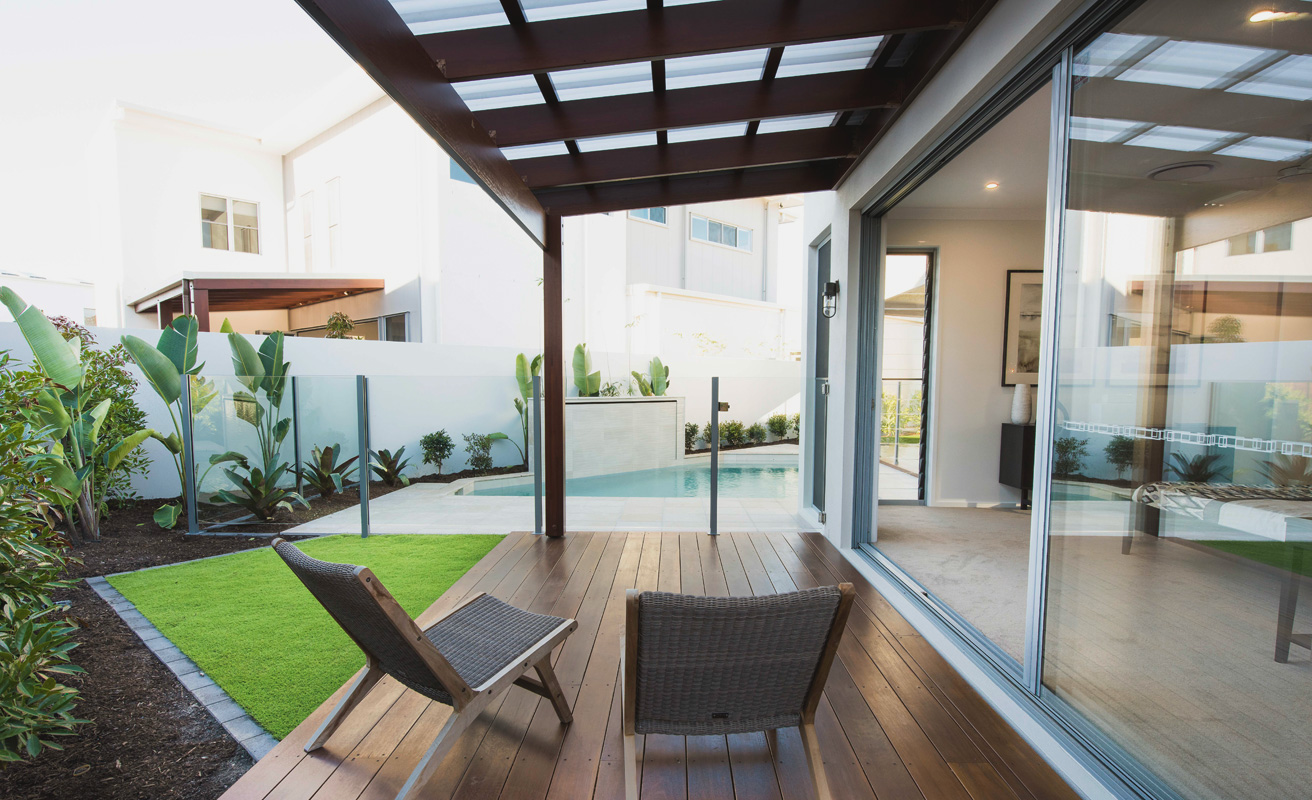

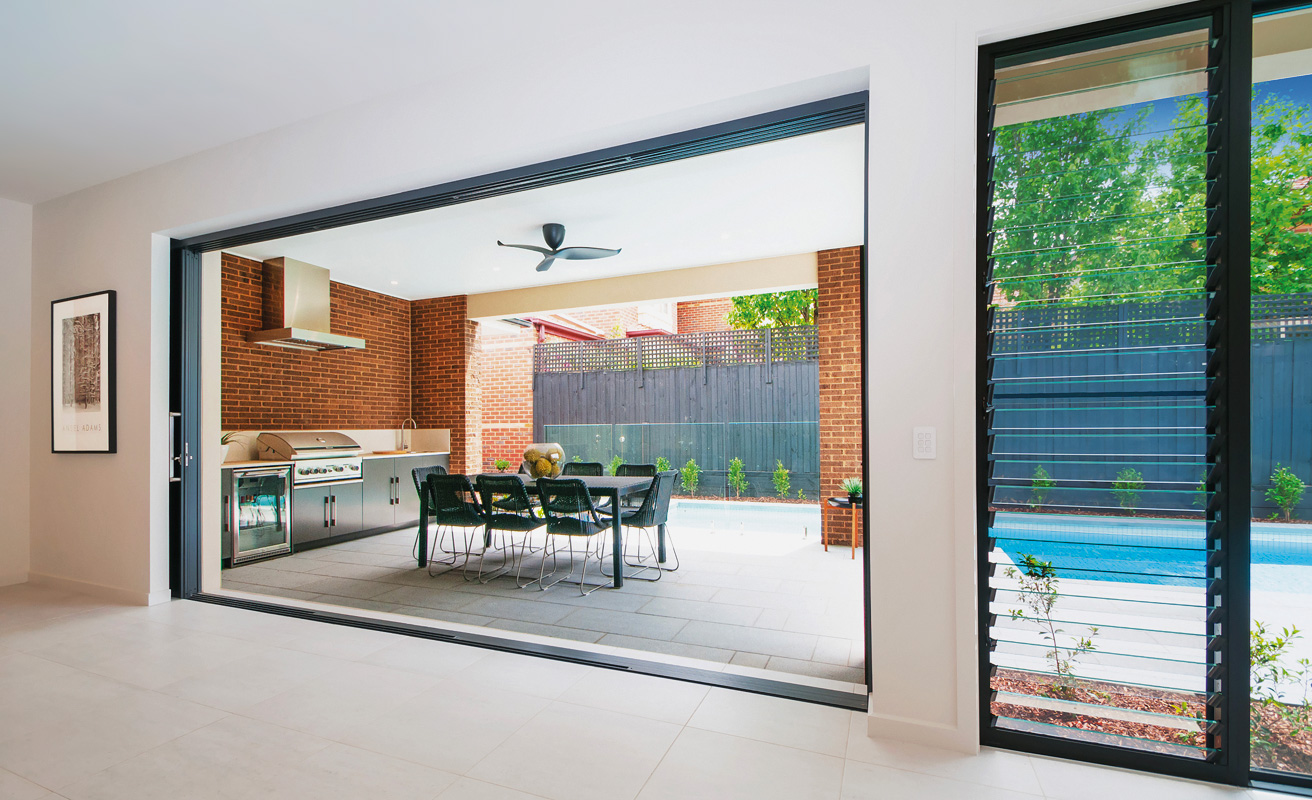

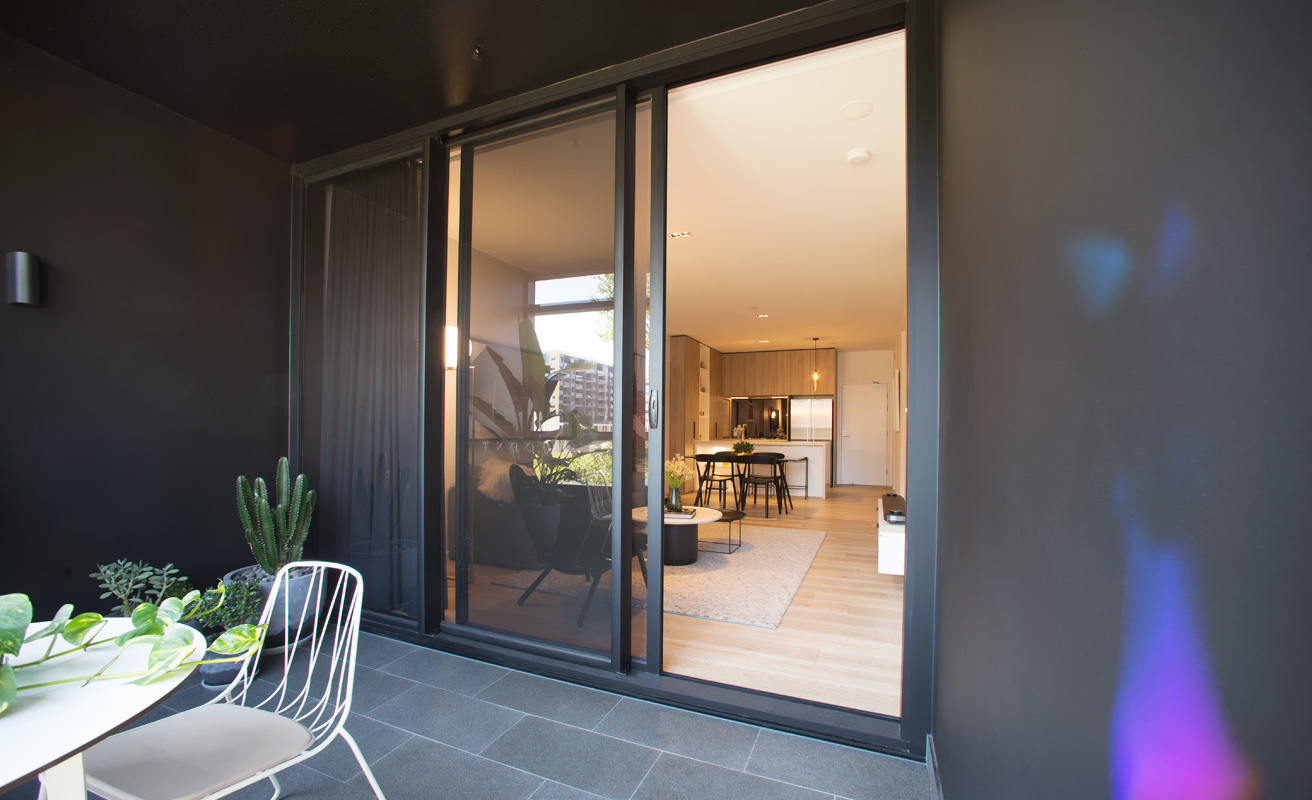

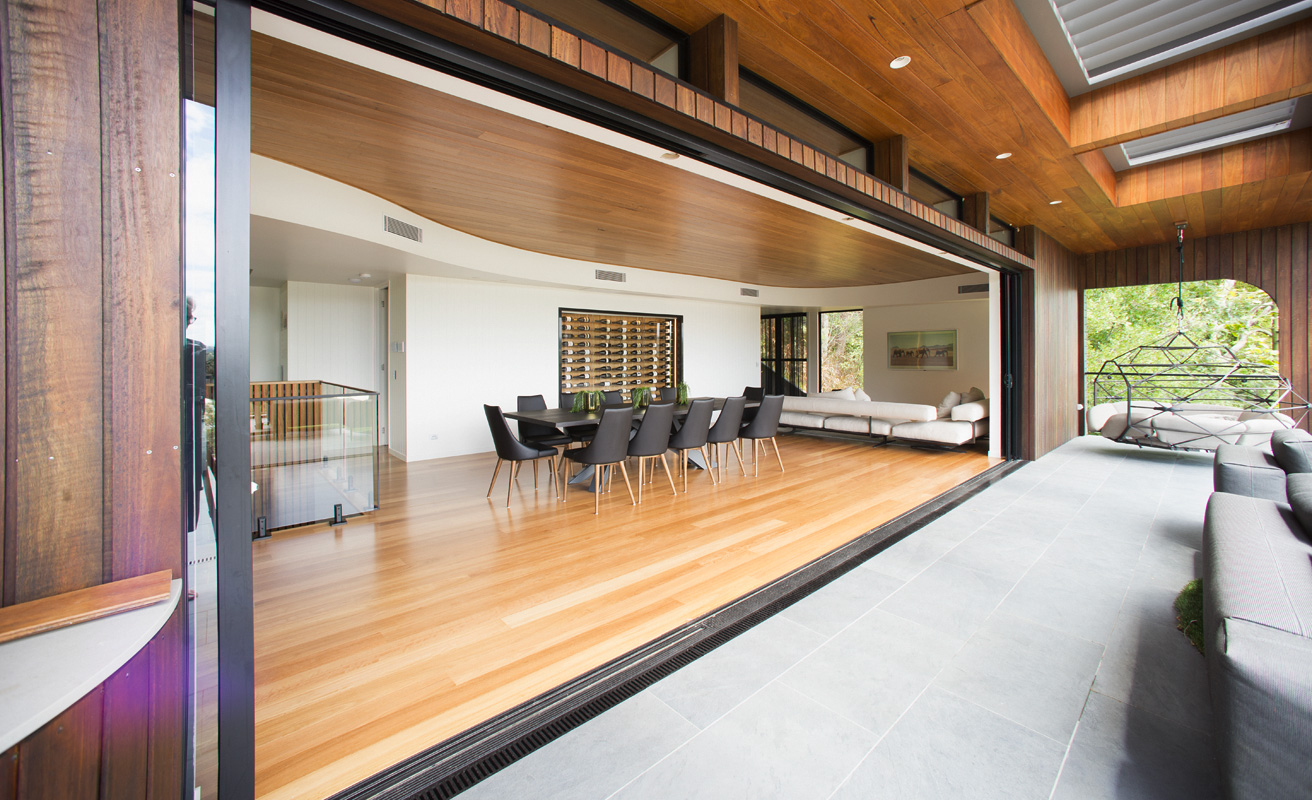

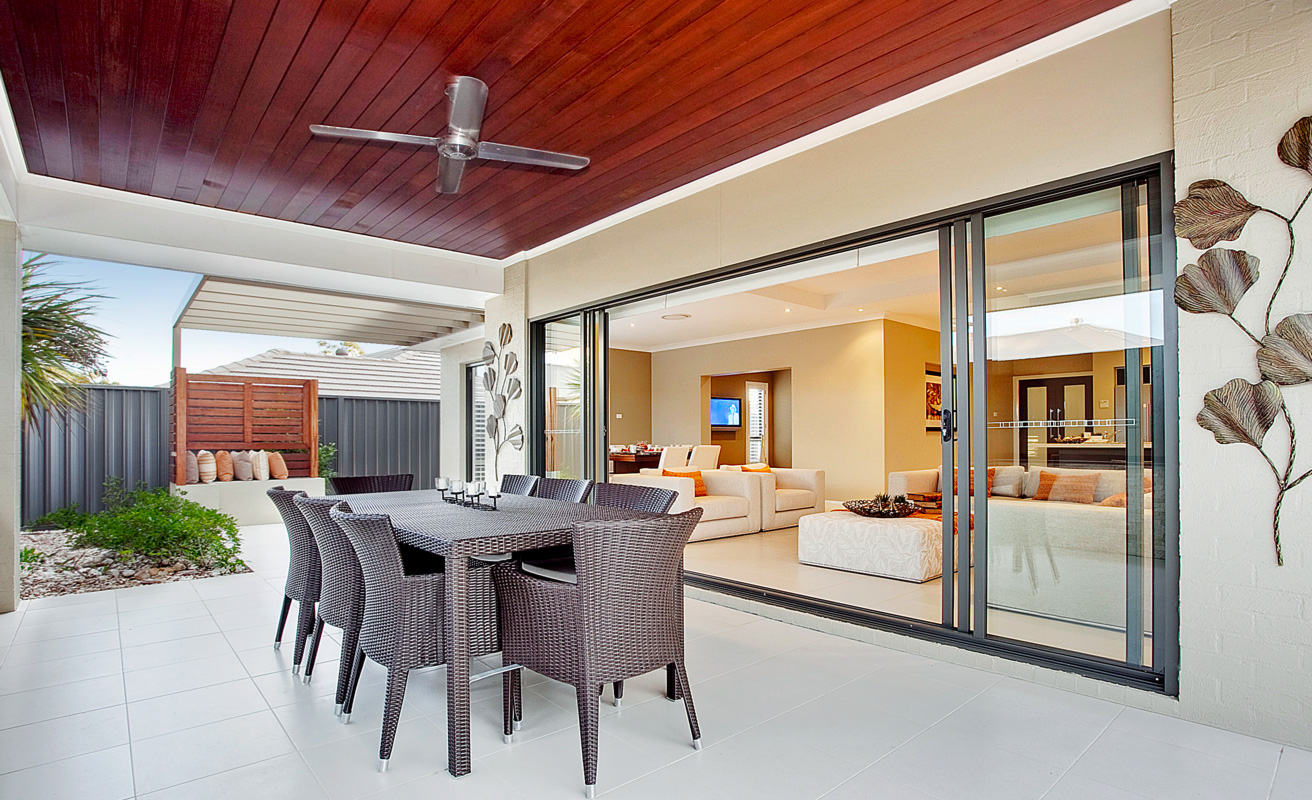

Extend your indoor and outdoor living areas with Suncoast Windows range of Stacker Doors. This product allows wide, easy access to your balcony, verandah or patio area.

Featuring a maximized glass area and clean sight lines, the Stacker Door offers increased natural light and unobstructed views.

The Suncoast Windows Stacking Door range is available in our Signature, Essential and Commercial design options.

Request a quote Information Centre

Features

  • Heavy Duty 100mm width frame for added strength and durability
  • Flexible sliding configurations maximize opening size to suit any design
  • Full joint sealing maximizes weather proofing performance
  • Full locking options, as well as an internal slider increases security and safety
  • Australian design award winner

Options

  • Colonial, Federation or custom bars
  • Large number of configurations available
  • Variety of colours (including timber alternative)
  • Key Locks
  • Insect or Security screens
  • Energy efficient/high performance system options

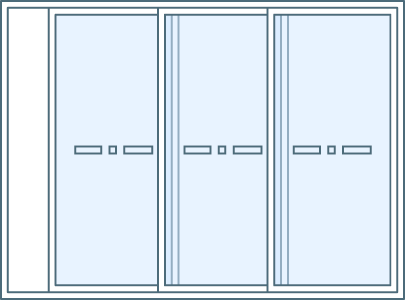

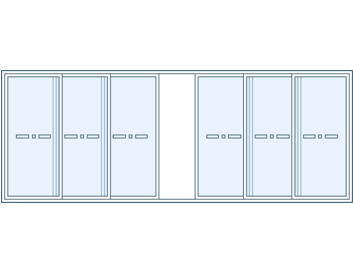

Typical Configurations

Performance Parameters

Greater door heights may be possible

Essential Signature Commercial
Frame Size 80mm, 140mm 100mm, 166mm 100mm, 150mm, 200mm, 250mm
Maximum Height 2450mm 2700mm 3100mm
Maximum Width 6246mm 6246mm 12000mm
Maximum Panel Width 1350mm 1350mm 1800mm
Maximum Panel Weight 50kg 100kg 160kg
Maximum Water Rating 300pa 600pa 650pa
Maximum Wind Rating 3300Pa ULS 4500Pa ULS 6000Pa ULS
Maximum Acoustic Rating Rw32 Rw44 Rw34
Maximum Glass Thickness - single glazed 6.76mm 12.76mm 10.76mm
Maximum Bushfire Rating BAL 40 BAL 40 BAL 40
Lowest U-value - single glazed 4.2 4.2 4.5
Lowest U-value - double glazed N/A 2.9 3.3

Frame Colours

Other colours available upon request.

Glass Options

Hardware

Hardware Colours
