Product Description

Suncoast Windows Sliding Windows combine the wide vistas provided by picture windows, with simple classic design and easy operation. The Sliding Window is a reliable choice for ventilation and energy efficiency. The low force sliding system provides a smooth and quiet operation that requires little maintenance.

Sliding Windows can be used to enhance a building’s characteristics with its simple, economical design.

The Suncoast Windows Sliding Window range is available in our Signature and Essential design options.

Request a quote Information Centre


  • 600 pascal sill available (water penetration resistance)
  • 52 mm wide standard frame
  • Up to 125mm wide frame
  • Full joint sealing maximizes weather proofing performance
  • Positive locking action to provide maximum security and safety
  • Australian design award winner
  • Insect and Security screens removable from inside only for ease of cleaning and emergency exit


  • Variety of colours (including timber alternative)
  • Glass options (Including Double Glazing)
  • Colonial, Federation or custom bars
  • Large number of configurations available
  • Key locks
  • Insect or Security screens
  • Energy efficient/high performance system options
  • Double Glazing

Standard Sizes

Download Signature Sliding Windows Standard Sizes
Download Standard Sizes for All Windows and Doors

Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.

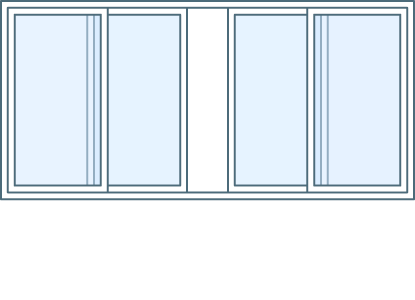

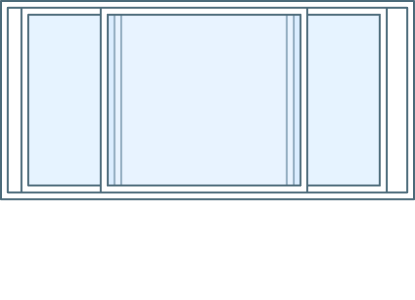

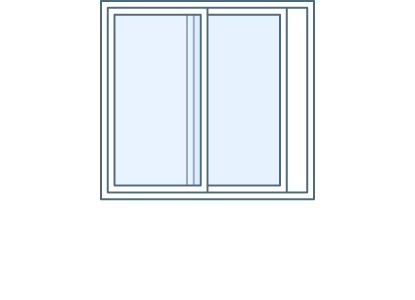

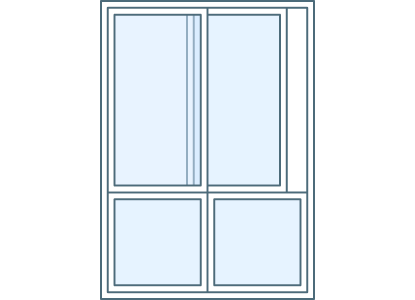

Typical Configurations

Performance Parameters

Essential Signature
Frame Size 52mm 67mm, 100mm
Maximum Height 1500mm 2000mm
Maximum Width 3010mm 5400mm
Maximum Panel Width 1500mm 1350mm
Maximum Panel Weight 24kg 100kg
Maximum Water Rating 600pa 600pa
Maximum Wind Rating 4500Pa ULS 6000Pa ULS
Maximum Acoustic Rating Rw30 Rw35
Maximum Glass Thickness - single glazed 6.76mm 12.76mm
Maximum Glass Thickness - double glazed N/A 20mm
Maximum Bushfire Rating BAL 40 BAL 40
Lowest U-value - single glazed 4.6 4.7
Lowest U-value - double glazed N/A 3.2

Frame Colours

Other colours available upon request.

Glass Options


Hardware Colours
