Product Description

Suncoast Windows Louvre Windows give you access to cool summer breezes whilst providing a point of difference to the design of your home.

Louvres provide complete control and energy efficiency, allowing you to maximize and adjust airflow with ease.

The Suncoast Windows Louvre Window range is available in our Signature design option.

Suncoast Windows are also a supplier of Safetyline Jalousie. These can be quoted and supplied if specifically requested.

Request a quote Information Centre

Features

  • Fully adjustable galleries for controlled ventilation & improved climate control
  • Full joint sealing maximizes weather proofing performance
  • Insect & Security screens do not interfere with glass blades or use
  • 125mm wide frame
  • Australian design award winner

Options

  • Galleries available in a range of colours (black is standard)
  • Blades available in glass, timber or aluminium
  • Glass options (Including Double Glazing)
  • Variety of colours (including timber alternative)
  • Key locks
  • Insect or Security screens
  • Energy efficient/high performance system options
  • Double Glazing

Standard Sizes

Download Signature Louvre Windows Standard Sizes
Queensland
Download Standard Sizes for All Windows and Doors
Queensland

Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.

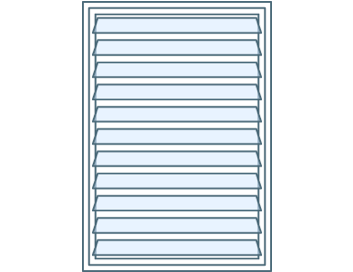

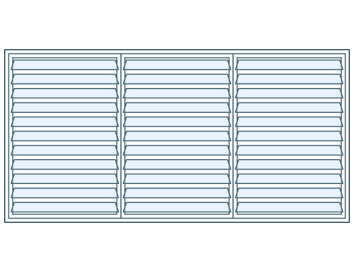

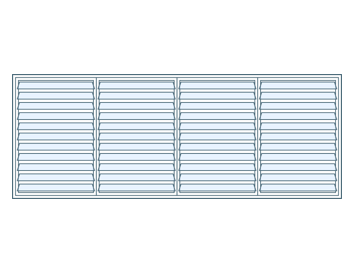

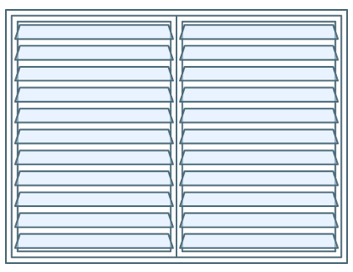

Typical Configurations

Performance Parameters

Essential Signature
Frame Size - 125mm
Maximum Height - 3000mm
Maximum Width - 5430mm
Maximum Panel Width - 1000mm
Maximum Water Rating - 300pa
Maximum Wind Rating - 4500Pa ULS
Maximum Acoustic Rating - Rw25
Maximum Glass Thickness - single glazed - 6mm
Maximum Bushfire Rating - BAL 19
Lowest U-value - single glazed - 4.5

Smart Solutions

Energy Efficiency

Noise Reduction

Added Protection

Bushfire Protection

Frame Colours

Other colours available upon request.

Glass Options

Glass Options info

Hardware

Hardware Colours
