Product Description

Casement windows are ideal for use with fixed windows and provide a stylish option to suit the traditional or contemporary home.
Suncoast Windows Casement windows can swing open up to 90° (like a door) to provide superior ventilation, while the large glass areas provide unobstructed views and bathe your rooms in natural light.

The Casement range is available in our Signature, Essential and Commercial design options.

Request a quote Information Centre


  • Casement windows can be proportioned to almost any dimension, allowing them to stand alone, stack vertically or be combined horizontally
  • Modern slimline design
  • Traditional solid sash giving heritage appearance
  • Full joint sealing maximises weather proofing performance
  • Limited opening capability for multi storey applications
  • High rating for energy performance due to superior sealing action
  • 52 mm wide standard frame
  • Up to 125mm wide frame
  • Australian design award winner
  • Insect and security screens removable from inside only for ease of cleaning and emergency exit


  • Colonial, Federation or custom bars
  • Variety of colours (including timber alternative)
  • Glass options – Suitable for thicker glass panes up to 25mm (Including Double Glazing)
  • Insulated glass units (double glazing) for thermal and acoustic applications
  • Integrated screening does not interfere with winder
  • Energy efficient / High performance system options
  • Key locks
  • Insect or security screens
  • Double Glazing

Standard Sizes

Download Signature Casement Windows Standard Sizes
Download Standard Sizes for All Windows and Doors

Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.

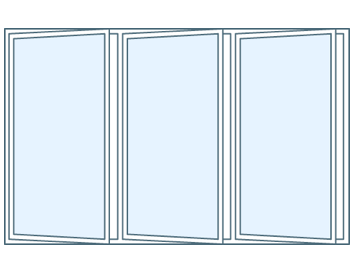

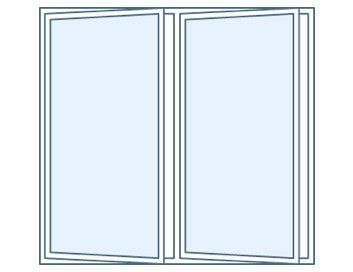

Typical Configurations

Performance Parameters

Essential Signature Signature LB
Frame Size 52mm 100mm 100mm
Maximum Height 1800mm 1800mm 2400mm
Maximum Width 3440mm 3440mm 3440mm
Maximum Panel Width 860mm 860mm 860mm
Maximum Panel Weight 42kg 42kg 42kg
Maximum Water Rating 600pa 600pa 600pa
Maximum Wind Rating 4500Pa ULS 4500Pa ULS 6000Pa ULS
Maximum Acoustic Rating Rw37 Rw38 Rw38
Maximum Glass Thickness - single glazed 12.76mm 12.76mm 12.76mm
Maximum Glass Thickness - double glazed 24mm 24mm 24mm
Maximum Bushfire Rating BAL 40 BAL 40 BAL 40
Lowest U-value - single glazed 5.5 5.1 5.0
Lowest U-value - double glazed 4.7 3.6 3.5

Frame Colours

Other colours available upon request.

Glass Options


Hardware Colours
