Product Description

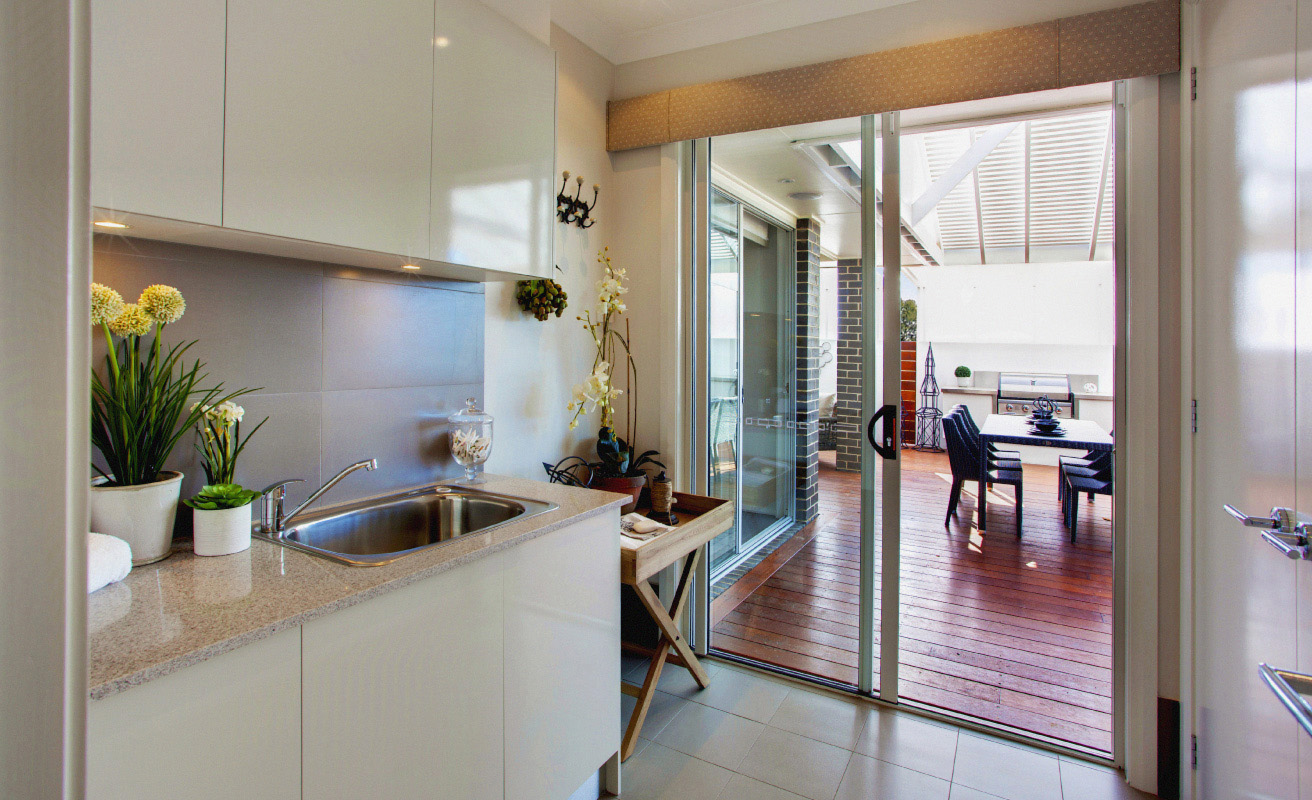

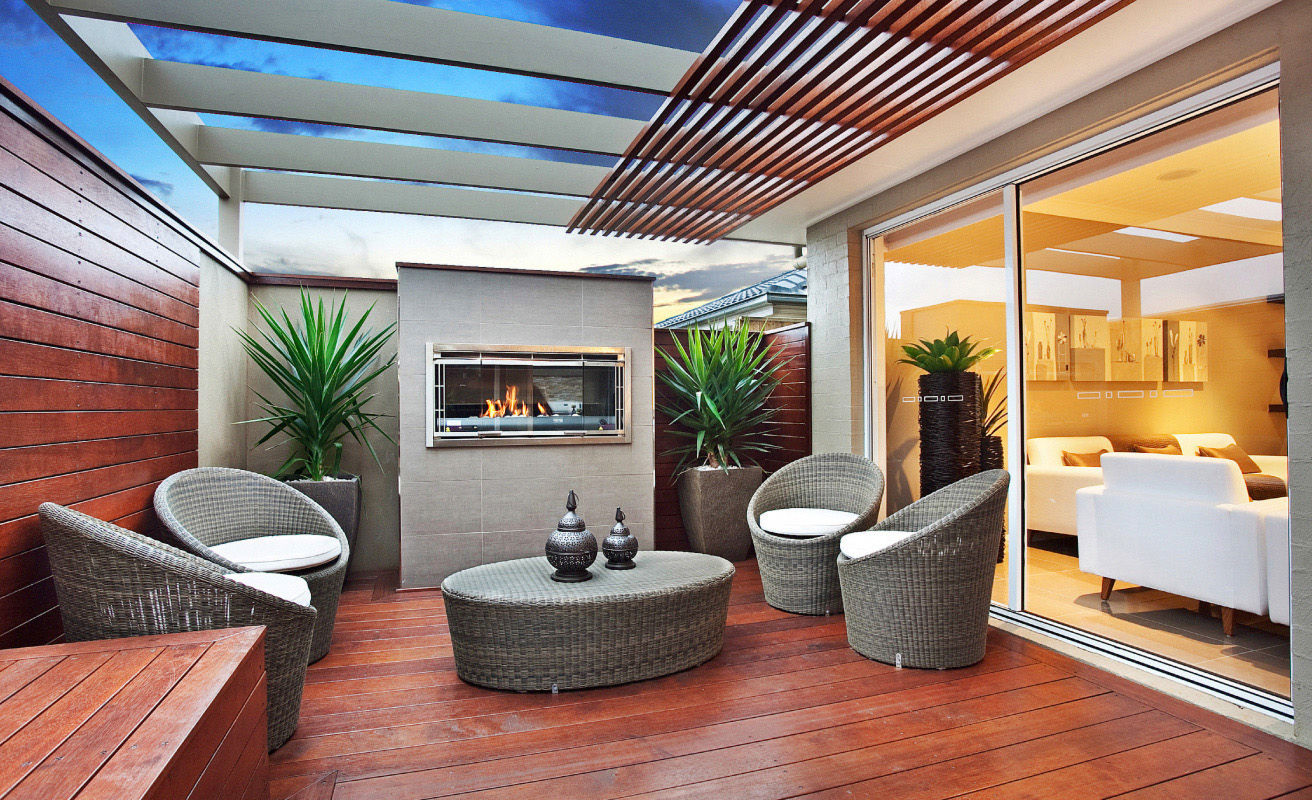

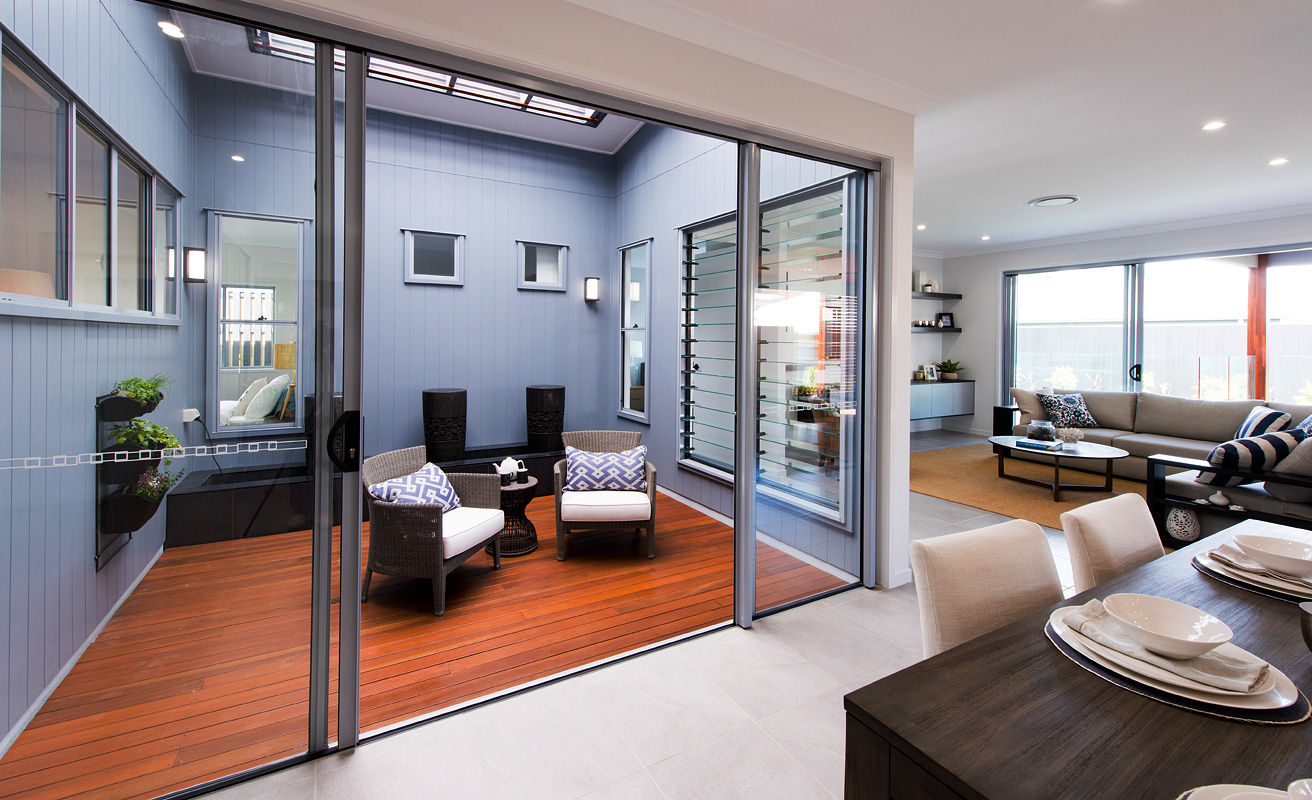

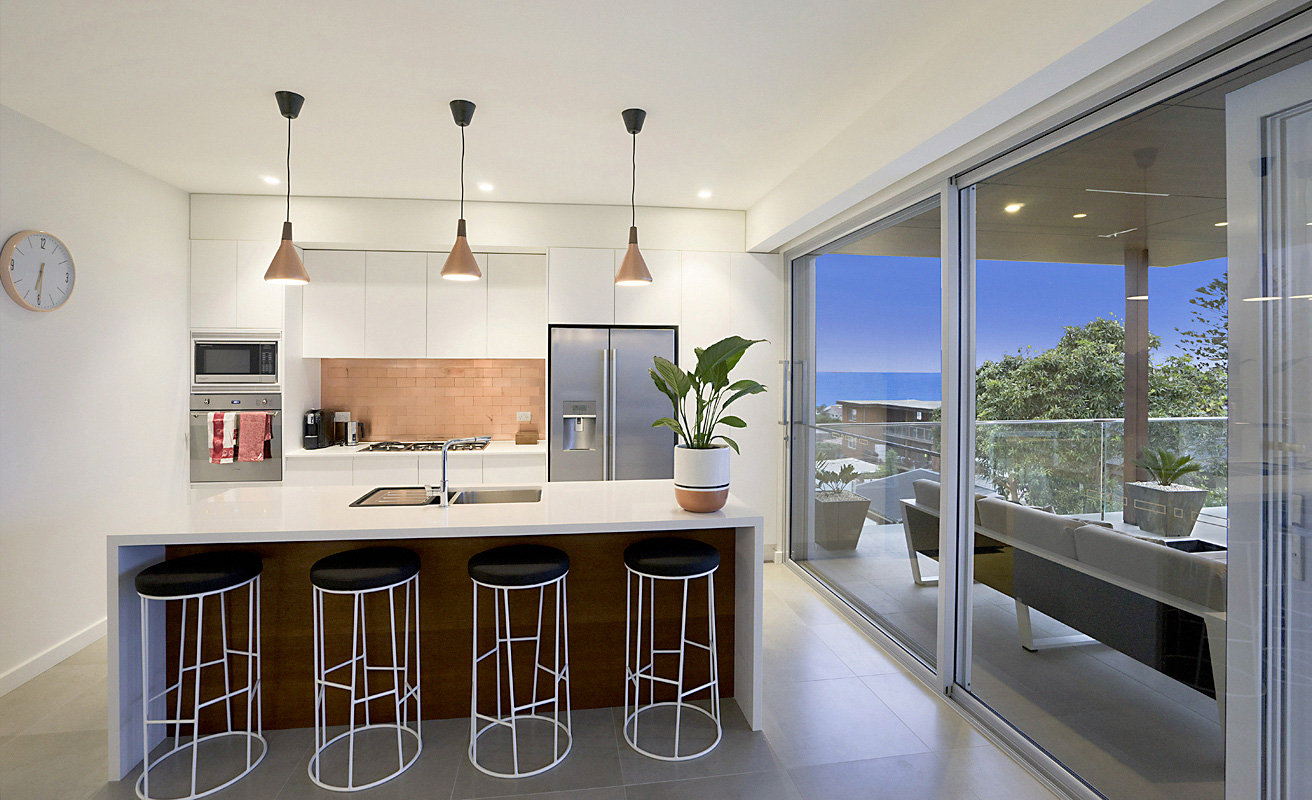

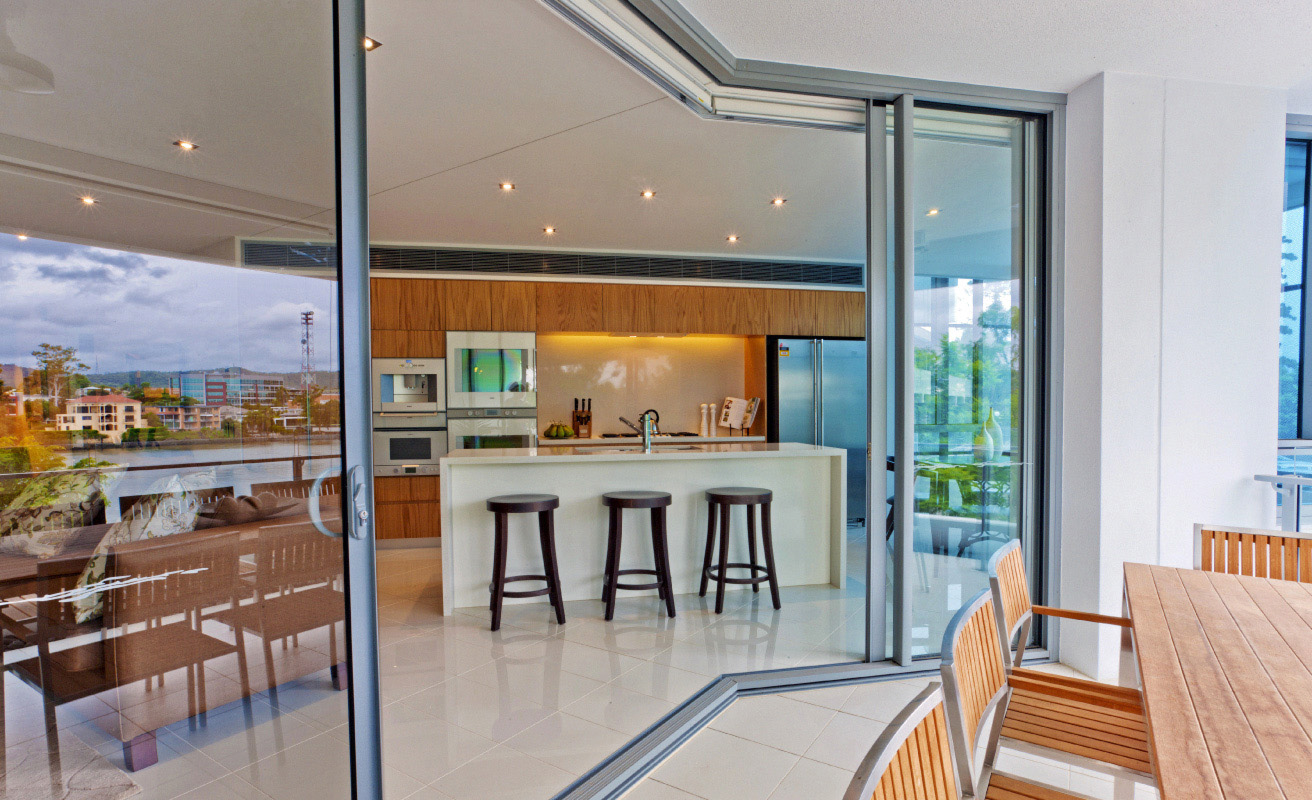

Frame your view perfectly with the bold clean lines of Suncoast Windows Sliding Doors.
Sliding Doors are available in a wide range of aesthetic styles, configurations and colours to suit any design application. They provide double the entry width of normal doors.

Quality design and construction adds strength, excellent security and durability for years of effortless use.

The Suncoast Windows Sliding Door range is available in our Signature, Essential and Commercial design options.

Request a quote Information Centre


  • Heavy Duty 100mm width frame for added strength and durability
  • Internal slider and full locking options for greater security
  • Full joint sealing maximizes weather proofing performance
  • Australian design award winner


  • Colonial, Federation or custom bars
  • Large number of configurations available
  • Variety of colours (including timber alternative)
  • Key Locks
  • Insect or Security screens
  • Energy effecient/high performance system options

Standard Sizes

Download Signature Sliding Doors Standard Sizes
Download Standard Sizes for All Windows and Doors

Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.

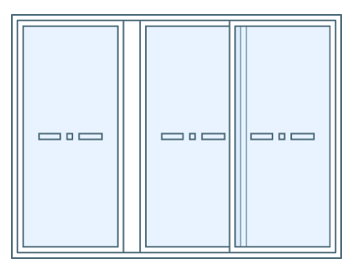

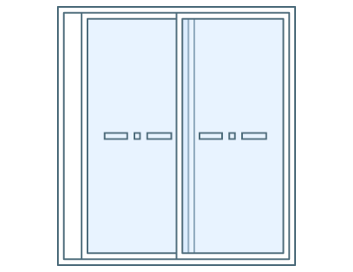

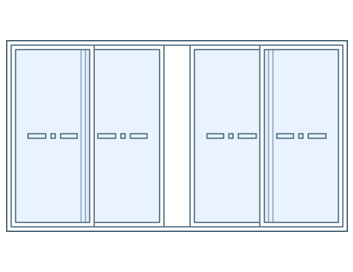

Typical Configurations

Performance Parameters

Greater door heights may be possible

Essential Signature Commercial
Frame Size 80mm, 140mm 100mm, 166mm 100mm, 150mm, 200mm, 250mm
Maximum Height 2450mm 2700mm 3100mm
Maximum Width 6246mm 6246mm 12000mm
Maximum Panel Width 1350mm 1350mm 1800mm
Maximum Panel Weight 50kg 100kg 160kg
Maximum Water Rating 300pa 600pa 650pa
Maximum Wind Rating 3300Pa ULS 4500Pa ULS 6000Pa ULS
Maximum Acoustic Rating Rw32 Rw44 Rw34
Maximum Glass Thickness - single glazed 6.76mm 12.76mm 10.76mm
Maximum Bushfire Rating BAL 40 BAL 40 BAL 40
Lowest U-value - single glazed 4.2 4.2 4.5
Lowest U-value - double glazed N/A 2.9 3.3

Frame Colours

Other colours available upon request.

Glass Options


Hardware Colours
