French and Hinged

Product Description

With flexibility in design and opening arrangements, the Suncoast Windows entry door frame offers you control over the final presentation of your entrance way. You can also choose from a variety of styles of hinged aluminium doors to suit the entry door frame.

Using side lights, high lights and an aluminium glass door with an entry door frame, your entrance way will become a feature of your home.

The Suncoast Windows French and Hinged Door range is available in our Signature, Essential and Commercial design options.

Features

Accommodates 35mm to 41mm timber doors with plumb and level jambs with sills, every time
Features snap-on door stops – Ideal for concealing fixings
In-swing or out-swing door frames available
125mm wide frame for high strength with no bowing or warping often seen in conventional timber surrounds
Continuous unbroken seals for improved performance
Heavy duty corrosion resistant hinges and full range of hardware options for aluminium door providing low maintenance and high durability
Safety and insect screens can be easily attached to the outside
Semi-concealed drainage system
High rating for energy performance due to superior sealing action
Australian design award winner

Options

Variety of colours (including timber alternative)
Glass options (Including Double Glazing)
Colonial, Federation or custom bars
Key locks
Insect or security screens
Energy efficient/high performance system options

Standard Sizes

Download Signature Hinged Doors Standard Sizes

Queensland

Download Standard Sizes for All Windows and Doors

Queensland

Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.

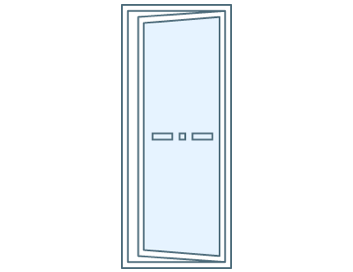

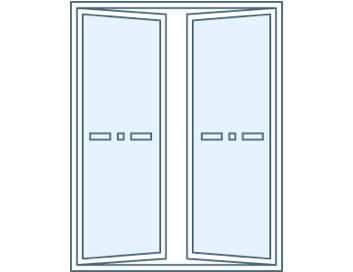

Typical Configurations

Performance Parameters

	Essential	Signature	Commercial
Frame Size	100mm	125mm	100mm
Maximum Height	2450mm	2450mm	2700mm
Maximum Width	1936mm	1936mm	2000mm
Maximum Panel Width	1000mm	1000mm	1000mm
Maximum Panel Weight	50kg	50kg	80kg
Maximum Water Rating	600pa	150pa	N/A
Maximum Wind Rating	4000Pa ULS	4000Pa ULS	N/A
Maximum Acoustic Rating	Rw33	Rw33	Rw34
Maximum Glass Thickness - single glazed	12.38mm	12.38mm	13.52mm
Maximum Glass Thickness - double glazed	24mm	24mm	24mm
Maximum Bushfire Rating	BAL 40	BAL 40	BAL 40
Lowest U-value - single glazed	4.4	4.2	4.6
Lowest U-value - double glazed	3.4	3.1	3.4
